Import test result only

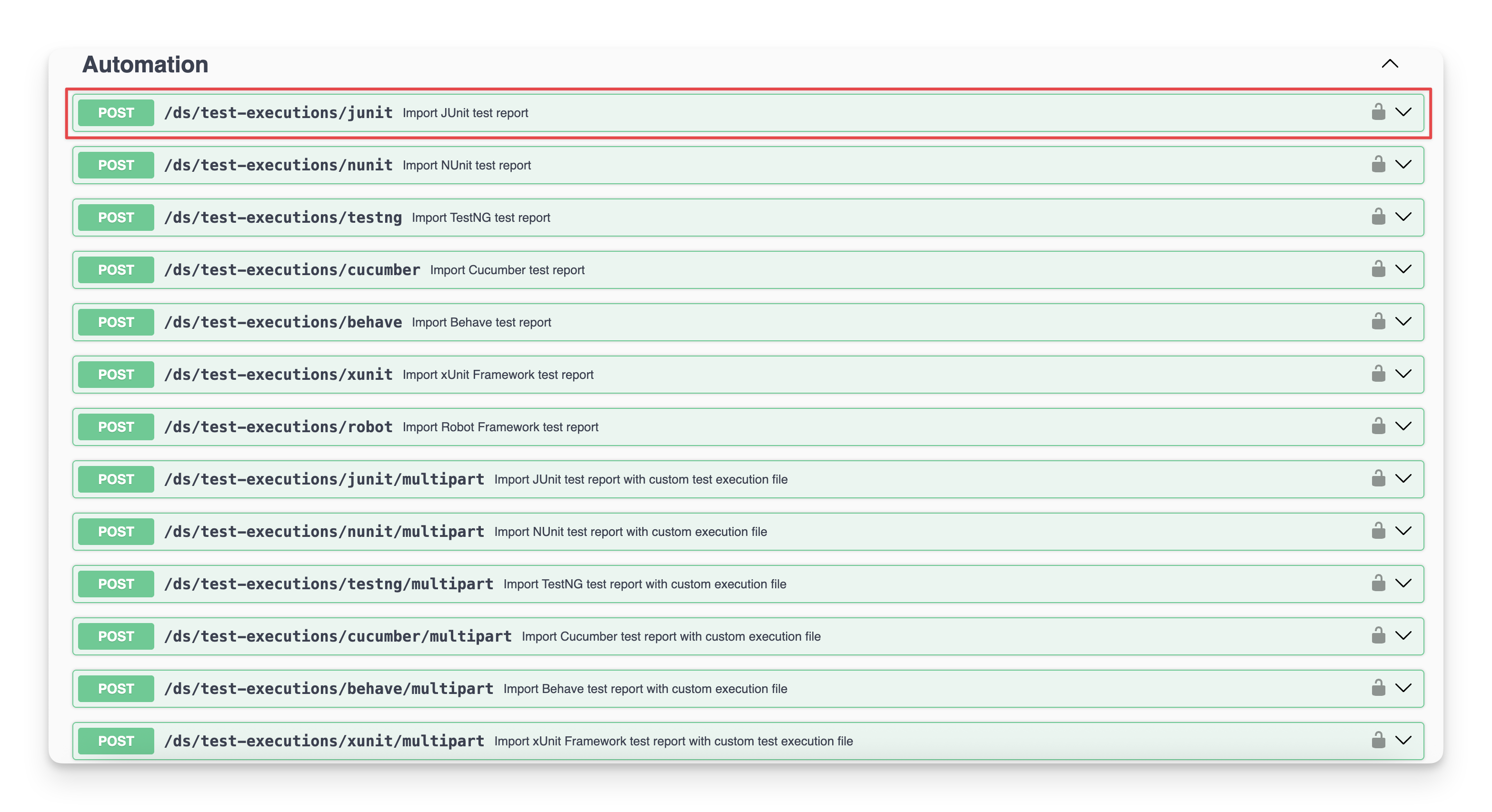

POST /ds/test-executions/junit

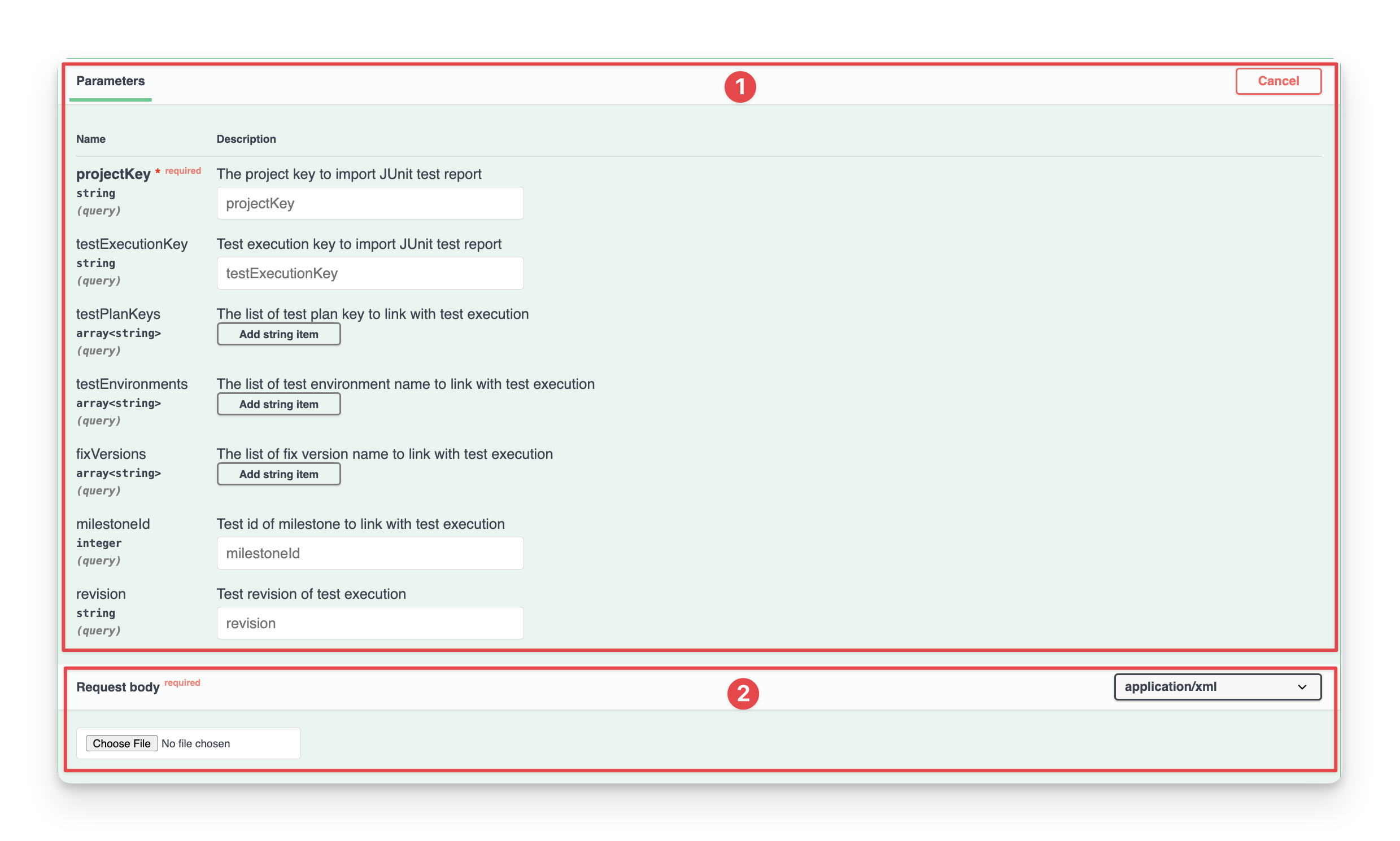

Parameters and request body
Param | Type | Required | Description |
|---|
projectKey | string |
| Key of the project where test result will be imported. |
milestoneId | integer | | Milestone id to link to Test execution.
To retrieve Milestone id go to Milestone feature and click Copy Id. Check out Milestone Document.
|
testExecutionKey | string | | Test execution key to import test report. |
testPlanKeys | array[string] | | Test plan key to import test report. If you specify a Test Plan, the tests will automatically be added to it if they are not already included. |
testEnvironments | array[string] | | A string containing a list of test environments separated by ",". |
fixVersions | array[string] | | A string containing a list of fixVersions separated by “,”. |
revision | string | | Revision to link to Test execution. |
Request body will contain a XML file which is JUnit report that is going to be imported. Learn more about JUnit testing framework.
Example
BASH
curl -X 'POST' \
'https://api.agiletest.app/ds/test-executions/junit?projectKey=ATP' \
-H 'accept: application/json' \
-H 'Authorization: JWT <token>' \
-H 'Content-Type: application/xml' \
--data-binary '@my-report.xml'
In that, <token> is the result from previous step Get Authenticated.
Test result example
XML
<?xml version="1.0" encoding="UTF-8"?>
<testsuite xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="https://maven.apache.org/surefire/maven-surefire-plugin/xsd/surefire-test-report-3.0.xsd" version="3.0" name="com.shoppingapp.AddressTest" time="0.006" tests="9" errors="0" skipped="0" failures="0">
<properties>
<property name="gopherProxySet" value="false"/>
<property name="awt.toolkit" value="sun.lwawt.macosx.LWCToolkit"/>
<property name="java.specification.version" value="11"/>
<property name="sun.cpu.isalist" value=""/>
<property name="sun.jnu.encoding" value="UTF-8"/>
<property name="java.class.path" value="/Users/thachnguyen/Work/autotest/agile-test-sample-projects/junit/target/test-classes:/Users/thachnguyen/Work/autotest/agile-test-sample-projects/junit/target/classes:/Users/thachnguyen/.m2/repository/org/junit/jupiter/junit-jupiter-api/5.7.0/junit-jupiter-api-5.7.0.jar:/Users/thachnguyen/.m2/repository/org/apiguardian/apiguardian-api/1.1.0/apiguardian-api-1.1.0.jar:/Users/thachnguyen/.m2/repository/org/opentest4j/opentest4j/1.2.0/opentest4j-1.2.0.jar:/Users/thachnguyen/.m2/repository/org/junit/platform/junit-platform-commons/1.7.0/junit-platform-commons-1.7.0.jar:/Users/thachnguyen/.m2/repository/org/junit/jupiter/junit-jupiter-engine/5.7.0/junit-jupiter-engine-5.7.0.jar:/Users/thachnguyen/.m2/repository/org/junit/platform/junit-platform-engine/1.7.0/junit-platform-engine-1.7.0.jar:/Users/thachnguyen/.m2/repository/org/mockito/mockito-core/3.12.4/mockito-core-3.12.4.jar:/Users/thachnguyen/.m2/repository/net/bytebuddy/byte-buddy/1.11.13/byte-buddy-1.11.13.jar:/Users/thachnguyen/.m2/repository/net/bytebuddy/byte-buddy-agent/1.11.13/byte-buddy-agent-1.11.13.jar:/Users/thachnguyen/.m2/repository/org/objenesis/objenesis/3.2/objenesis-3.2.jar:/Users/thachnguyen/.m2/repository/org/mockito/mockito-junit-jupiter/3.12.4/mockito-junit-jupiter-3.12.4.jar:/Users/thachnguyen/.m2/repository/org/slf4j/slf4j-simple/1.7.30/slf4j-simple-1.7.30.jar:/Users/thachnguyen/.m2/repository/org/slf4j/slf4j-api/1.7.30/slf4j-api-1.7.30.jar:"/>
<property name="java.vm.vendor" value="Homebrew"/>
<property name="sun.arch.data.model" value="64"/>
<property name="java.vendor.url" value="https://github.com/Homebrew/homebrew-core/issues"/>
<property name="user.timezone" value=""/>
<property name="java.vm.specification.version" value="11"/>
<property name="os.name" value="Mac OS X"/>
<property name="sun.java.launcher" value="SUN_STANDARD"/>
<property name="user.country" value="VN"/>
<property name="sun.boot.library.path" value="/opt/homebrew/Cellar/openjdk@11/11.0.21/libexec/openjdk.jdk/Contents/Home/lib"/>
<property name="sun.java.command" value="/Users/thachnguyen/Work/autotest/agile-test-sample-projects/junit/target/surefire/surefirebooter3444332120704230486.jar /Users/thachnguyen/Work/autotest/agile-test-sample-projects/junit/target/surefire 2024-11-05T16-27-38_971-jvmRun1 surefire14941232156557041274tmp surefire_0651957426851720248tmp"/>
<property name="http.nonProxyHosts" value="local|*.local|169.254/16|*.169.254/16"/>
<property name="jdk.debug" value="release"/>
<property name="surefire.test.class.path" value="/Users/thachnguyen/Work/autotest/agile-test-sample-projects/junit/target/test-classes:/Users/thachnguyen/Work/autotest/agile-test-sample-projects/junit/target/classes:/Users/thachnguyen/.m2/repository/org/junit/jupiter/junit-jupiter-api/5.7.0/junit-jupiter-api-5.7.0.jar:/Users/thachnguyen/.m2/repository/org/apiguardian/apiguardian-api/1.1.0/apiguardian-api-1.1.0.jar:/Users/thachnguyen/.m2/repository/org/opentest4j/opentest4j/1.2.0/opentest4j-1.2.0.jar:/Users/thachnguyen/.m2/repository/org/junit/platform/junit-platform-commons/1.7.0/junit-platform-commons-1.7.0.jar:/Users/thachnguyen/.m2/repository/org/junit/jupiter/junit-jupiter-engine/5.7.0/junit-jupiter-engine-5.7.0.jar:/Users/thachnguyen/.m2/repository/org/junit/platform/junit-platform-engine/1.7.0/junit-platform-engine-1.7.0.jar:/Users/thachnguyen/.m2/repository/org/mockito/mockito-core/3.12.4/mockito-core-3.12.4.jar:/Users/thachnguyen/.m2/repository/net/bytebuddy/byte-buddy/1.11.13/byte-buddy-1.11.13.jar:/Users/thachnguyen/.m2/repository/net/bytebuddy/byte-buddy-agent/1.11.13/byte-buddy-agent-1.11.13.jar:/Users/thachnguyen/.m2/repository/org/objenesis/objenesis/3.2/objenesis-3.2.jar:/Users/thachnguyen/.m2/repository/org/mockito/mockito-junit-jupiter/3.12.4/mockito-junit-jupiter-3.12.4.jar:/Users/thachnguyen/.m2/repository/org/slf4j/slf4j-simple/1.7.30/slf4j-simple-1.7.30.jar:/Users/thachnguyen/.m2/repository/org/slf4j/slf4j-api/1.7.30/slf4j-api-1.7.30.jar:"/>
<property name="sun.cpu.endian" value="little"/>
<property name="user.home" value="/Users/thachnguyen"/>
<property name="user.language" value="en"/>
<property name="java.specification.vendor" value="Oracle Corporation"/>
<property name="java.version.date" value="2023-10-17"/>
<property name="java.home" value="/opt/homebrew/Cellar/openjdk@11/11.0.21/libexec/openjdk.jdk/Contents/Home"/>
<property name="file.separator" value="/"/>
<property name="basedir" value="/Users/thachnguyen/Work/autotest/agile-test-sample-projects/junit"/>
<property name="java.vm.compressedOopsMode" value="Zero based"/>
<property name="line.separator" value=" "/>
<property name="java.specification.name" value="Java Platform API Specification"/>
<property name="java.vm.specification.vendor" value="Oracle Corporation"/>
<property name="java.awt.graphicsenv" value="sun.awt.CGraphicsEnvironment"/>
<property name="surefire.real.class.path" value="/Users/thachnguyen/Work/autotest/agile-test-sample-projects/junit/target/surefire/surefirebooter3444332120704230486.jar"/>
<property name="sun.management.compiler" value="HotSpot 64-Bit Tiered Compilers"/>
<property name="ftp.nonProxyHosts" value="local|*.local|169.254/16|*.169.254/16"/>
<property name="java.runtime.version" value="11.0.21+0"/>
<property name="user.name" value="thachnguyen"/>
<property name="path.separator" value=":"/>
<property name="os.version" value="12.5"/>
<property name="java.runtime.name" value="OpenJDK Runtime Environment"/>
<property name="file.encoding" value="UTF-8"/>
<property name="java.vm.name" value="OpenJDK 64-Bit Server VM"/>
<property name="java.vendor.version" value="Homebrew"/>
<property name="localRepository" value="/Users/thachnguyen/.m2/repository"/>
<property name="java.vendor.url.bug" value="https://github.com/Homebrew/homebrew-core/issues"/>
<property name="java.io.tmpdir" value="/var/folders/f0/hxzh9_fx1zb29pdn334l6nr40000gn/T/"/>
<property name="java.version" value="11.0.21"/>
<property name="user.dir" value="/Users/thachnguyen/Work/autotest/agile-test-sample-projects/junit"/>
<property name="os.arch" value="aarch64"/>
<property name="java.vm.specification.name" value="Java Virtual Machine Specification"/>
<property name="java.awt.printerjob" value="sun.lwawt.macosx.CPrinterJob"/>
<property name="sun.os.patch.level" value="unknown"/>
<property name="java.library.path" value="/Users/thachnguyen/Library/Java/Extensions:/Library/Java/Extensions:/Network/Library/Java/Extensions:/System/Library/Java/Extensions:/usr/lib/java:."/>
<property name="java.vm.info" value="mixed mode"/>
<property name="java.vendor" value="Homebrew"/>
<property name="java.vm.version" value="11.0.21+0"/>
<property name="java.specification.maintenance.version" value="2"/>
<property name="sun.io.unicode.encoding" value="UnicodeBig"/>
<property name="java.class.version" value="55.0"/>
<property name="socksNonProxyHosts" value="local|*.local|169.254/16|*.169.254/16"/>
</properties>
<testcase name="testEqualsSameAddress" classname="com.shoppingapp.AddressTest" time="0.001"/>
<testcase name="testHashCodeConsistency" classname="com.shoppingapp.AddressTest" time="0"/>
<testcase name="testEqualsDifferentAddress" classname="com.shoppingapp.AddressTest" time="0.004"/>
<testcase name="testGetFullAddress" classname="com.shoppingapp.AddressTest" time="0"/>
<testcase name="testSetStreet" classname="com.shoppingapp.AddressTest" time="0.001"/>
<testcase name="testSetCity" classname="com.shoppingapp.AddressTest" time="0"/>
<testcase name="testToStringFormat" classname="com.shoppingapp.AddressTest" time="0"/>
<testcase name="testSetZipCode" classname="com.shoppingapp.AddressTest" time="0"/>
<testcase name="testSetState" classname="com.shoppingapp.AddressTest" time="0"/>
</testsuite>
Output example
JSON
{
"id": "321016",
"key": "ATP-1856",
"url": "https://company.atlassian.net/browse/ATP-1856"
}
Import test result with new execution details

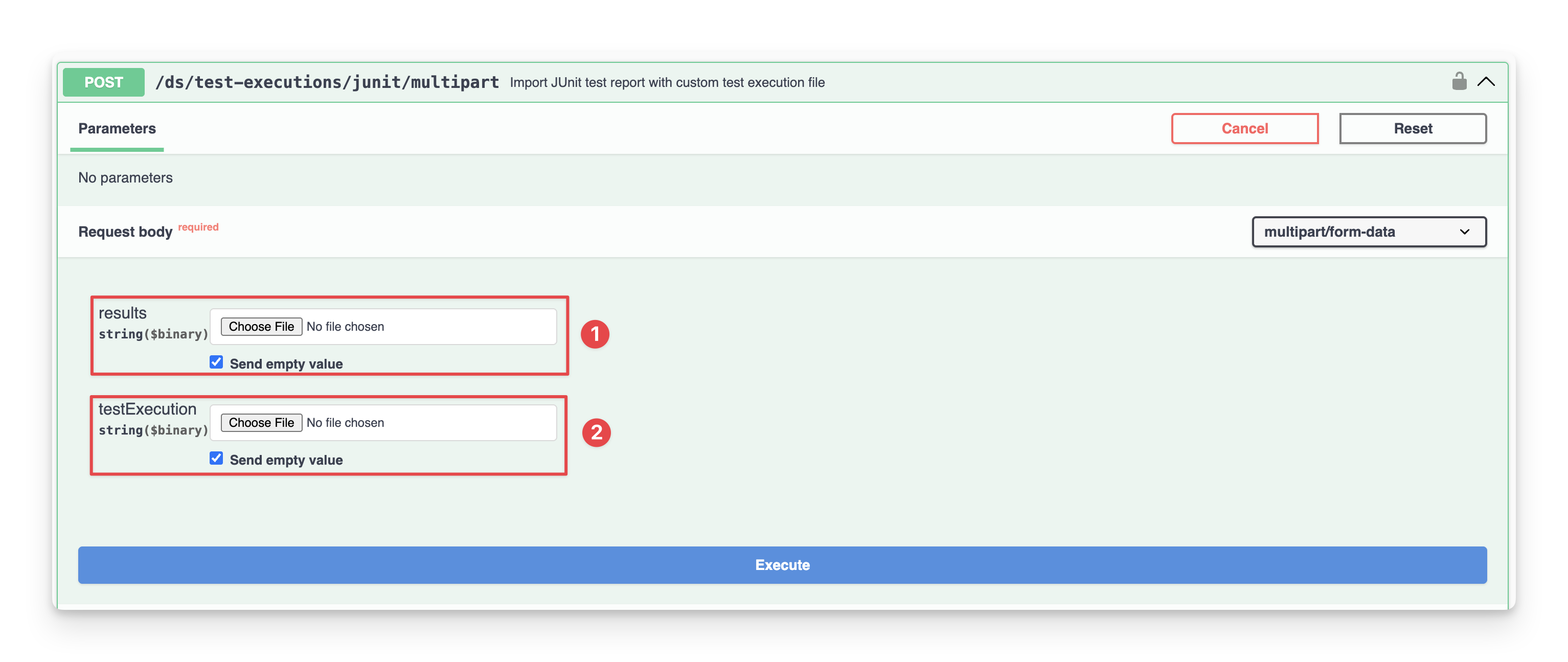

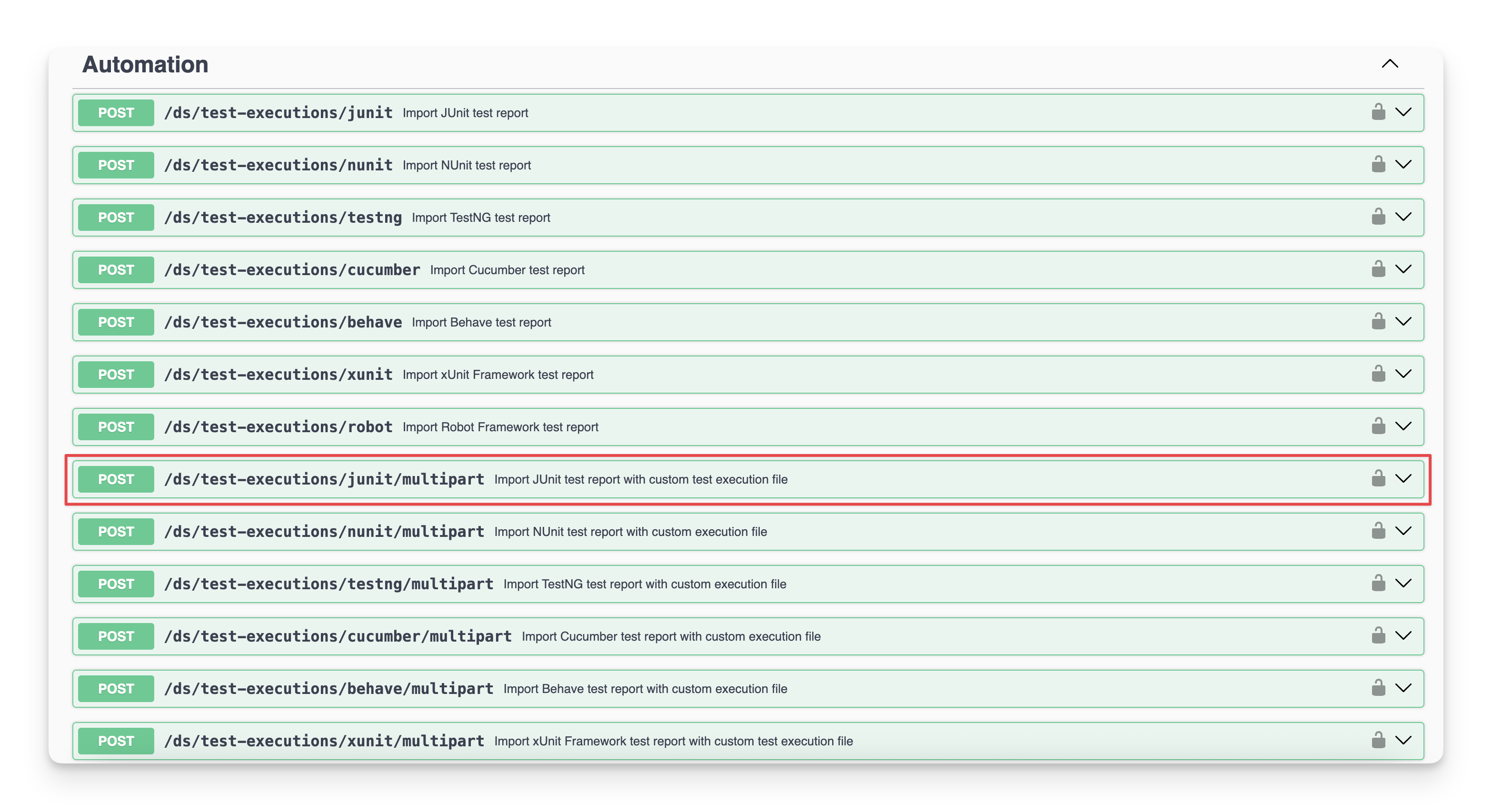

POST /ds/test-executions/junit/multipart
Parameters and request body
This request does not require any parameters. Instead, you need to submit two separate files: one containing the test execution details and the other containing the imported test report.
Test Execution file structure
fields object:
summary: Summary of Test execution issue that will be created.
project.id: Project id in which the Test execution will be created.
issuetype.id: The identifier specifying the type of issue to be created.
agileTestFields object:
Each of these fields serves a specific purpose in creating and organizing the test execution:
The fields object contains standard issue creation information like what project it belongs to and what type of issue it is.
The agileTestFields object contains Agile Test-specific information for linking the execution to milestones and test plans.
Example
BASH
curl -X 'POST' \
'https://api.agiletest.app/ds/test-executions/behave/multipart' \
-H 'accept: application/json' \
-H 'Authorization: JWT <token>' \
-H 'Content-Type: multipart/form-data' \
-F 'results=@my-report.xml;type=application/xml' \
-F 'testExecution=@test-execution.json;type=application/json'
In that, <token> is the result from previous step Get authenticated.
Regarding the test result, we will reuse the previous example.
Test execution detail example
JSON
{
"fields": {
"summary": "Regression test",
"project": {
"id": "17110"
},
"issuetype": {
"id": "16396"
}
},
"agileTestFields": {
"milestoneId": 5555,
"testPlanKeys": ["ATP-364", "ATP-362"]
}
}
In this example, make sure all details provided are accurate and relevant; otherwise, the request will fail. For example, if the issuetype.id you specify does not exist in the project with ID 17110, the system will return an error with the corresponding error code 400 .
Output example
JSON
{
"id": "321348",
"key": "ATP-1859",
"url": "https://company.atlassian.net/browse/ATP-1859"
}
Should you need any assistance or further AgileTest inquiries, contact here!
