NUnit XML result

Import test result only

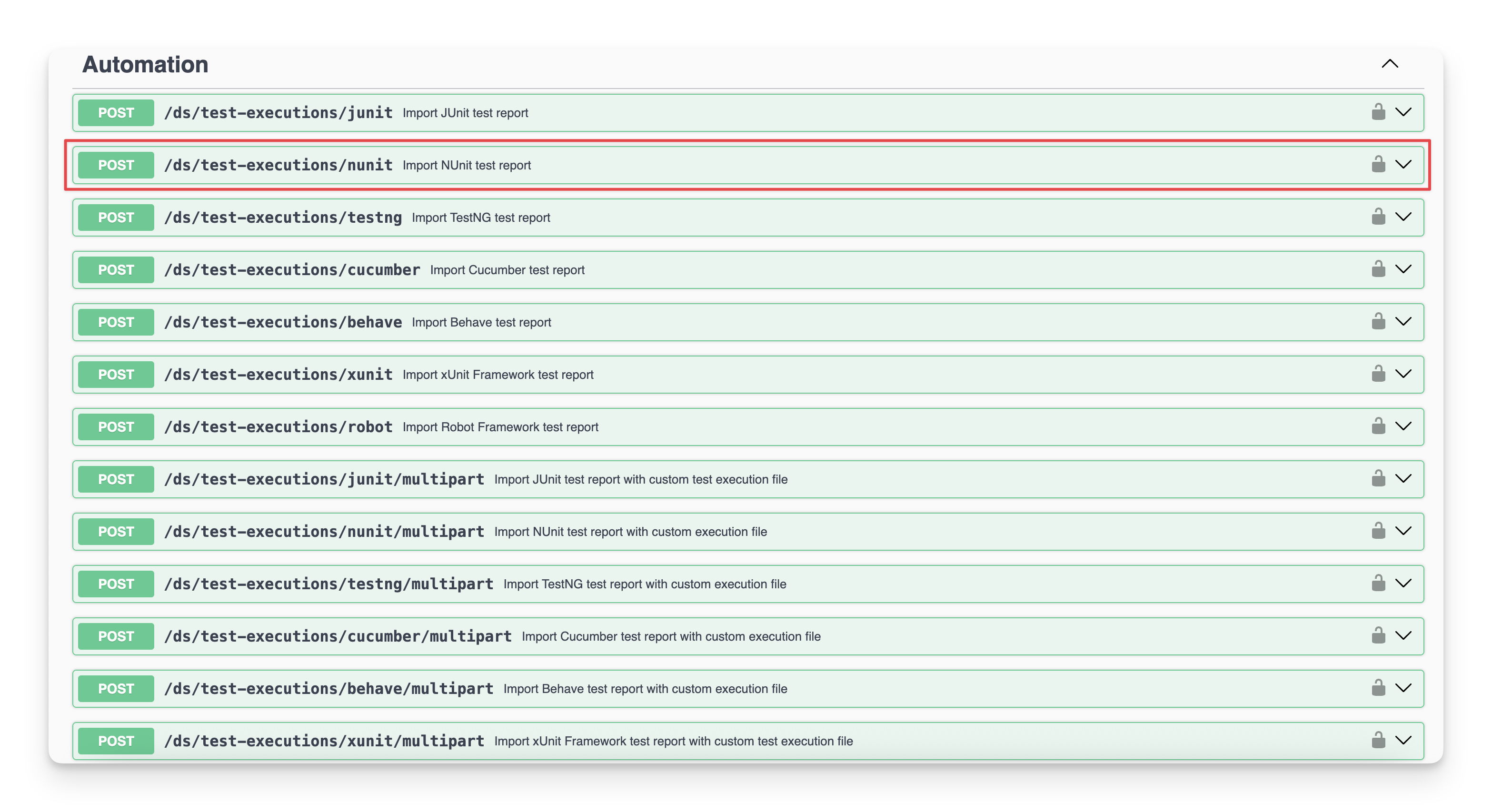

POST /ds/test-executions/nunit

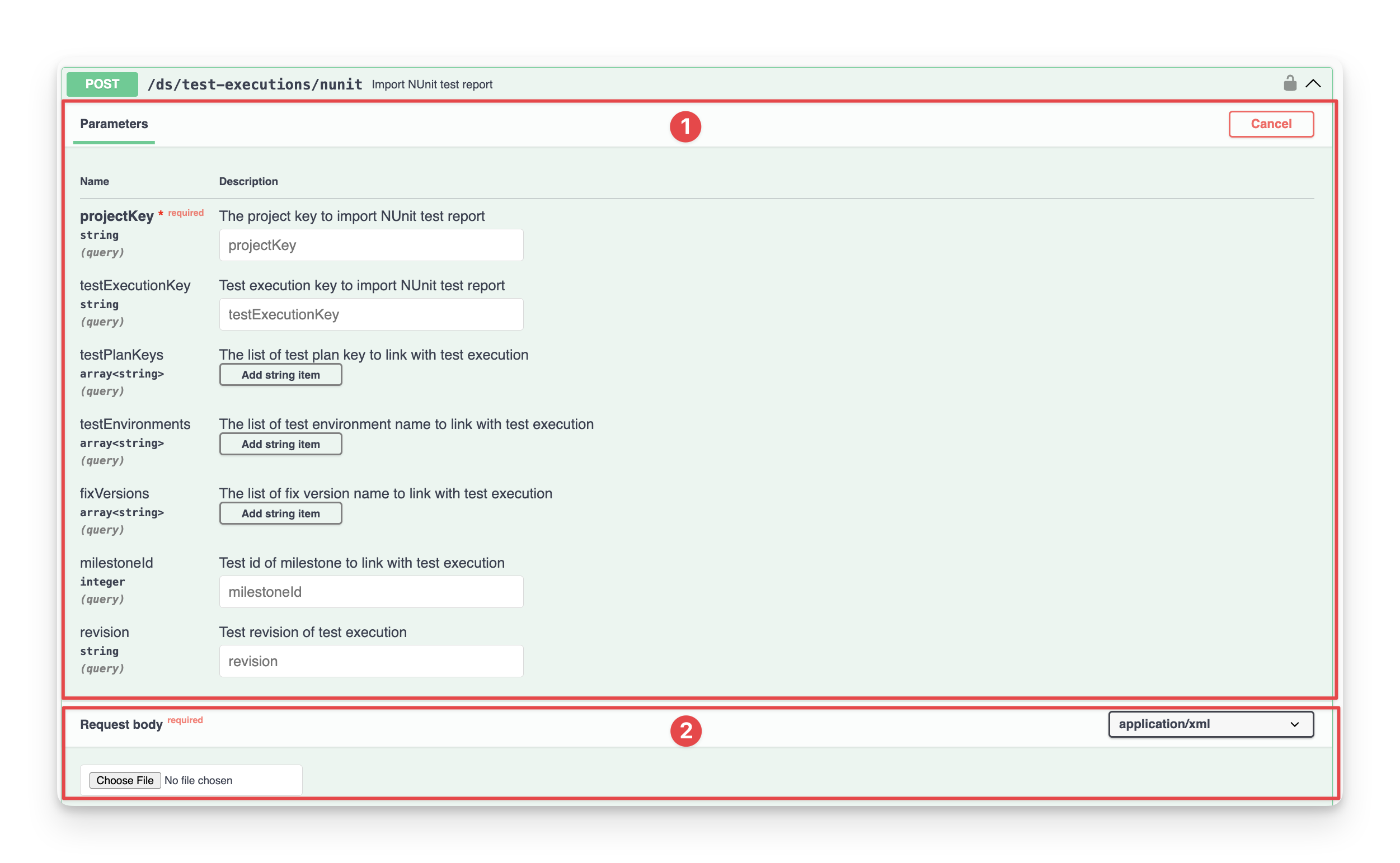

Parameters and request body

Param

Type

Required

Description

projectKey

string

(tick)

Key of the project where test result will be imported.

milestoneId

integer

Milestone id to link to Test execution.

To retrieve Milestone id go to Milestone feature and click Copy Id.

Check out Milestone Document.

testExecutionKey

string

Test execution key to import test report.

testPlanKeys

array[string]

Test plan key to import test report.

If you specify the Test Plan, the Tests will be added automatically to the Test Plan if they're not part of it.

testEnvironments

array[string]

A string containing a list of test environments separated by ",".

fixVersions

array[string]

A string containing a list of fixVersions separated by “,”.

revision

string

Revision to link to Test execution.

Request body will contain a XML file which is NUnit report that is going to be imported. Learn more about NUnit testing framework.

Example

BASH
curl -X 'POST' \
  'https://api.agiletest.app/ds/test-executions/nunit?projectKey=ATP' \
  -H 'accept: application/json' \
  -H 'Authorization: JWT <token>' \
  -H 'Content-Type: application/xml' \
  --data-binary '@my-report.xml'

In that, <token> is the result from previous step Get Authenticated.

Test result example
XML
<?xml version="1.0" encoding="utf-8"?>
<TestRun id="8860d293-d5f2-426d-b484-638fe5353ba4" name="@192 2024-11-06 08:02:24" xmlns="http://microsoft.com/schemas/VisualStudio/TeamTest/2010">
  <Times creation="2024-11-06T08:02:24.6472140+07:00" queuing="2024-11-06T08:02:24.6472140+07:00" start="2024-11-06T08:02:24.2711630+07:00" finish="2024-11-06T08:02:24.6500910+07:00" />
  <TestSettings name="default" id="6acb7458-2291-4d38-a6bb-95ab3bc30c64">
    <Deployment runDeploymentRoot="_192_2024-11-06_08_02_24" />
  </TestSettings>
  <Results>
    <UnitTestResult executionId="9a81d049-e9e7-4874-aaae-21e21ccd88fd" testId="c9b94efd-fad8-799d-59fb-84da75310140" testName="PaymentSuccessful_ShouldReturnTrueWhenEnoughFunds" computerName="192" duration="00:00:00.0026430" startTime="2024-11-06T08:02:24.5749060+07:00" endTime="2024-11-06T08:02:24.5775140+07:00" testType="13cdc9d9-ddb5-4fa4-a97d-d965ccfc6d4b" outcome="Passed" testListId="8c84fa94-04c1-424b-9868-57a2d4851a1d" relativeResultsDirectory="9a81d049-e9e7-4874-aaae-21e21ccd88fd" />
    <UnitTestResult executionId="cd4aeb5b-76ca-44ae-b670-b58da908d418" testId="972141ae-87e7-dcb4-0306-227b198b7f87" testName="PaymentUnsuccessful_ShouldReturnFalseWhenInsufficientFunds" computerName="192" duration="00:00:00.0002000" startTime="2024-11-06T08:02:24.5789850+07:00" endTime="2024-11-06T08:02:24.5791850+07:00" testType="13cdc9d9-ddb5-4fa4-a97d-d965ccfc6d4b" outcome="Passed" testListId="8c84fa94-04c1-424b-9868-57a2d4851a1d" relativeResultsDirectory="cd4aeb5b-76ca-44ae-b670-b58da908d418" />
    <UnitTestResult executionId="206c6aed-e789-469b-b2e5-b15f7d247cb1" testId="cee53d66-c073-beae-bfd3-5a8f69631f4e" testName="AddMultipleProductsToCart_ShouldIncreaseCartTotal" computerName="192" duration="00:00:00.0033500" startTime="2024-11-06T08:02:24.5802010+07:00" endTime="2024-11-06T08:02:24.5835510+07:00" testType="13cdc9d9-ddb5-4fa4-a97d-d965ccfc6d4b" outcome="Passed" testListId="8c84fa94-04c1-424b-9868-57a2d4851a1d" relativeResultsDirectory="206c6aed-e789-469b-b2e5-b15f7d247cb1" />
    <UnitTestResult executionId="8a79af1c-28dd-4494-b2bf-4911f97bd1b8" testId="bf07e06e-9dbf-acbe-f7e3-4122445667b1" testName="AddProductToCart_ShouldIncreaseCartTotal" computerName="192" duration="00:00:00.0001010" startTime="2024-11-06T08:02:24.5835580+07:00" endTime="2024-11-06T08:02:24.5836600+07:00" testType="13cdc9d9-ddb5-4fa4-a97d-d965ccfc6d4b" outcome="Passed" testListId="8c84fa94-04c1-424b-9868-57a2d4851a1d" relativeResultsDirectory="8a79af1c-28dd-4494-b2bf-4911f97bd1b8" />
    <UnitTestResult executionId="8e1816d8-c4b8-4bca-a67f-7cc15d97f336" testId="8f51f38c-0140-7212-4610-e1ae152c2782" testName="Deliver_ShouldReturnCorrectDeliveryDetails" computerName="192" duration="00:00:00.0002920" startTime="2024-11-06T08:02:24.5837950+07:00" endTime="2024-11-06T08:02:24.5840870+07:00" testType="13cdc9d9-ddb5-4fa4-a97d-d965ccfc6d4b" outcome="Passed" testListId="8c84fa94-04c1-424b-9868-57a2d4851a1d" relativeResultsDirectory="8e1816d8-c4b8-4bca-a67f-7cc15d97f336" />
    <UnitTestResult executionId="14f974a2-a895-4dcc-ab5e-b22138264258" testId="42e6eb66-64a4-ada1-d638-bbb7ef631c4a" testName="Checkout_ShouldClearCart" computerName="192" duration="00:00:00.0000850" startTime="2024-11-06T08:02:24.5836630+07:00" endTime="2024-11-06T08:02:24.5837480+07:00" testType="13cdc9d9-ddb5-4fa4-a97d-d965ccfc6d4b" outcome="Passed" testListId="8c84fa94-04c1-424b-9868-57a2d4851a1d" relativeResultsDirectory="14f974a2-a895-4dcc-ab5e-b22138264258" />
  </Results>
  <TestDefinitions>
    <UnitTest name="AddMultipleProductsToCart_ShouldIncreaseCartTotal" storage="/users/thachnguyen/work/autotest/agile-test-sample-projects/nunit/shoppingapp.tests/bin/debug/net8.0/shoppingapp.tests.dll" id="cee53d66-c073-beae-bfd3-5a8f69631f4e">
      <Execution id="206c6aed-e789-469b-b2e5-b15f7d247cb1" />
      <TestMethod codeBase="/Users/thachnguyen/Work/autotest/agile-test-sample-projects/nunit/ShoppingApp.Tests/bin/Debug/net8.0/ShoppingApp.Tests.dll" adapterTypeName="executor://nunit3testexecutor/" className="ShoppingApp.Tests.CartTests" name="AddMultipleProductsToCart_ShouldIncreaseCartTotal" />
    </UnitTest>
    <UnitTest name="PaymentUnsuccessful_ShouldReturnFalseWhenInsufficientFunds" storage="/users/thachnguyen/work/autotest/agile-test-sample-projects/nunit/shoppingapp.tests/bin/debug/net8.0/shoppingapp.tests.dll" id="972141ae-87e7-dcb4-0306-227b198b7f87">
      <Execution id="cd4aeb5b-76ca-44ae-b670-b58da908d418" />
      <TestMethod codeBase="/Users/thachnguyen/Work/autotest/agile-test-sample-projects/nunit/ShoppingApp.Tests/bin/Debug/net8.0/ShoppingApp.Tests.dll" adapterTypeName="executor://nunit3testexecutor/" className="ShoppingApp.Tests.BillingTests" name="PaymentUnsuccessful_ShouldReturnFalseWhenInsufficientFunds" />
    </UnitTest>
    <UnitTest name="Deliver_ShouldReturnCorrectDeliveryDetails" storage="/users/thachnguyen/work/autotest/agile-test-sample-projects/nunit/shoppingapp.tests/bin/debug/net8.0/shoppingapp.tests.dll" id="8f51f38c-0140-7212-4610-e1ae152c2782">
      <Execution id="8e1816d8-c4b8-4bca-a67f-7cc15d97f336" />
      <TestMethod codeBase="/Users/thachnguyen/Work/autotest/agile-test-sample-projects/nunit/ShoppingApp.Tests/bin/Debug/net8.0/ShoppingApp.Tests.dll" adapterTypeName="executor://nunit3testexecutor/" className="ShoppingApp.Tests.DeliveryTests" name="Deliver_ShouldReturnCorrectDeliveryDetails" />
    </UnitTest>
    <UnitTest name="PaymentSuccessful_ShouldReturnTrueWhenEnoughFunds" storage="/users/thachnguyen/work/autotest/agile-test-sample-projects/nunit/shoppingapp.tests/bin/debug/net8.0/shoppingapp.tests.dll" id="c9b94efd-fad8-799d-59fb-84da75310140">
      <Execution id="9a81d049-e9e7-4874-aaae-21e21ccd88fd" />
      <TestMethod codeBase="/Users/thachnguyen/Work/autotest/agile-test-sample-projects/nunit/ShoppingApp.Tests/bin/Debug/net8.0/ShoppingApp.Tests.dll" adapterTypeName="executor://nunit3testexecutor/" className="ShoppingApp.Tests.BillingTests" name="PaymentSuccessful_ShouldReturnTrueWhenEnoughFunds" />
    </UnitTest>
    <UnitTest name="AddProductToCart_ShouldIncreaseCartTotal" storage="/users/thachnguyen/work/autotest/agile-test-sample-projects/nunit/shoppingapp.tests/bin/debug/net8.0/shoppingapp.tests.dll" id="bf07e06e-9dbf-acbe-f7e3-4122445667b1">
      <Execution id="8a79af1c-28dd-4494-b2bf-4911f97bd1b8" />
      <TestMethod codeBase="/Users/thachnguyen/Work/autotest/agile-test-sample-projects/nunit/ShoppingApp.Tests/bin/Debug/net8.0/ShoppingApp.Tests.dll" adapterTypeName="executor://nunit3testexecutor/" className="ShoppingApp.Tests.CartTests" name="AddProductToCart_ShouldIncreaseCartTotal" />
    </UnitTest>
    <UnitTest name="Checkout_ShouldClearCart" storage="/users/thachnguyen/work/autotest/agile-test-sample-projects/nunit/shoppingapp.tests/bin/debug/net8.0/shoppingapp.tests.dll" id="42e6eb66-64a4-ada1-d638-bbb7ef631c4a">
      <Execution id="14f974a2-a895-4dcc-ab5e-b22138264258" />
      <TestMethod codeBase="/Users/thachnguyen/Work/autotest/agile-test-sample-projects/nunit/ShoppingApp.Tests/bin/Debug/net8.0/ShoppingApp.Tests.dll" adapterTypeName="executor://nunit3testexecutor/" className="ShoppingApp.Tests.CartTests" name="Checkout_ShouldClearCart" />
    </UnitTest>
  </TestDefinitions>
  <TestEntries>
    <TestEntry testId="c9b94efd-fad8-799d-59fb-84da75310140" executionId="9a81d049-e9e7-4874-aaae-21e21ccd88fd" testListId="8c84fa94-04c1-424b-9868-57a2d4851a1d" />
    <TestEntry testId="972141ae-87e7-dcb4-0306-227b198b7f87" executionId="cd4aeb5b-76ca-44ae-b670-b58da908d418" testListId="8c84fa94-04c1-424b-9868-57a2d4851a1d" />
    <TestEntry testId="cee53d66-c073-beae-bfd3-5a8f69631f4e" executionId="206c6aed-e789-469b-b2e5-b15f7d247cb1" testListId="8c84fa94-04c1-424b-9868-57a2d4851a1d" />
    <TestEntry testId="bf07e06e-9dbf-acbe-f7e3-4122445667b1" executionId="8a79af1c-28dd-4494-b2bf-4911f97bd1b8" testListId="8c84fa94-04c1-424b-9868-57a2d4851a1d" />
    <TestEntry testId="8f51f38c-0140-7212-4610-e1ae152c2782" executionId="8e1816d8-c4b8-4bca-a67f-7cc15d97f336" testListId="8c84fa94-04c1-424b-9868-57a2d4851a1d" />
    <TestEntry testId="42e6eb66-64a4-ada1-d638-bbb7ef631c4a" executionId="14f974a2-a895-4dcc-ab5e-b22138264258" testListId="8c84fa94-04c1-424b-9868-57a2d4851a1d" />
  </TestEntries>
  <TestLists>
    <TestList name="Results Not in a List" id="8c84fa94-04c1-424b-9868-57a2d4851a1d" />
    <TestList name="All Loaded Results" id="19431567-8539-422a-85d7-44ee4e166bda" />
  </TestLists>
  <ResultSummary outcome="Completed">
    <Counters total="6" executed="6" passed="6" failed="0" error="0" timeout="0" aborted="0" inconclusive="0" passedButRunAborted="0" notRunnable="0" notExecuted="0" disconnected="0" warning="0" completed="0" inProgress="0" pending="0" />
    <Output>
      <StdOut>NUnit Adapter 4.5.0.0: Test execution started
Running all tests in /Users/thachnguyen/Work/autotest/agile-test-sample-projects/nunit/ShoppingApp.Tests/bin/Debug/net8.0/ShoppingApp.Tests.dll
   NUnit3TestExecutor discovered 6 of 6 NUnit test cases using Current Discovery mode, Non-Explicit run
NUnit Adapter 4.5.0.0: Test execution complete
</StdOut>
    </Output>
  </ResultSummary>
</TestRun>
Output example
JSON
{
    "id": "321016",
    "key": "ATP-1856",
    "url": "https://company.atlassian.net/browse/ATP-1856"
}

Import test result with new execution details

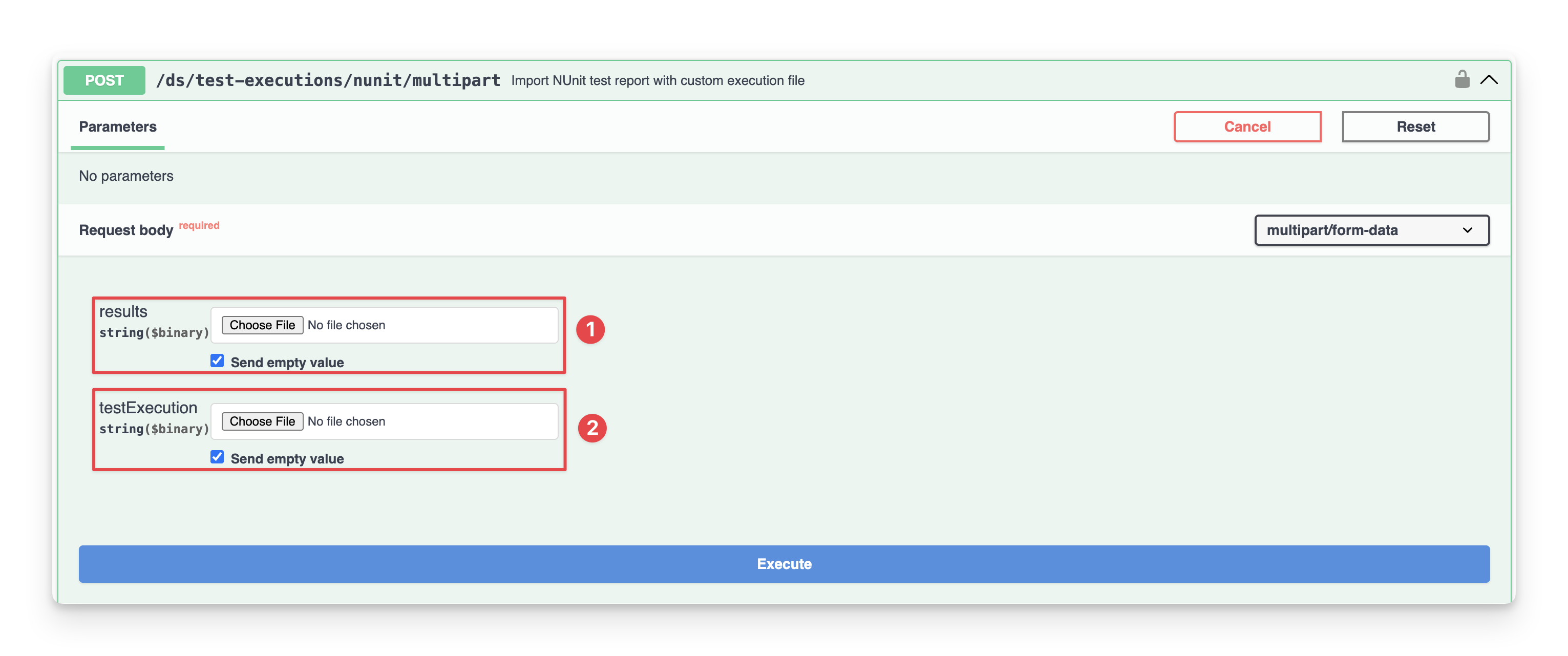

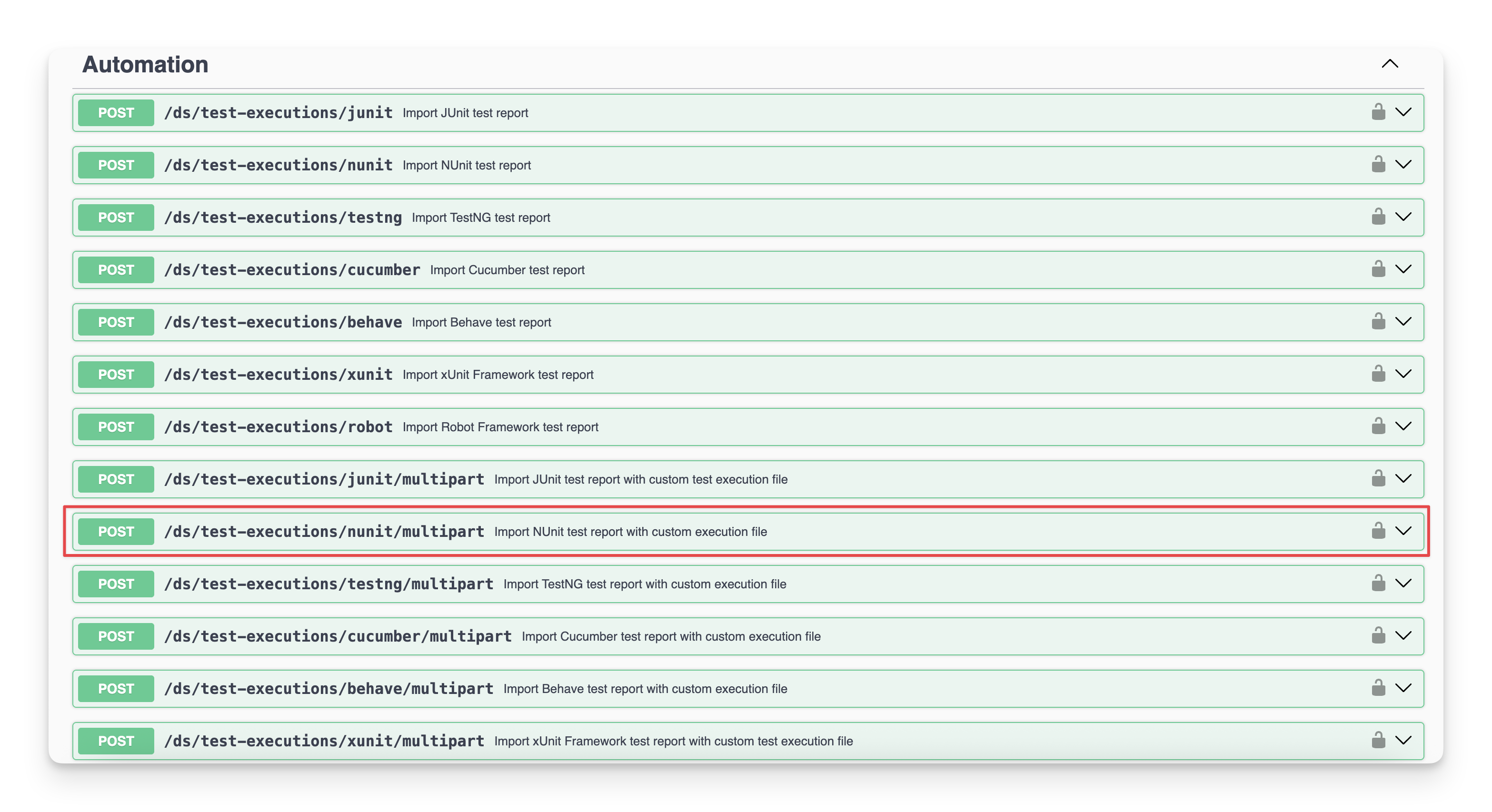

POST /ds/test-executions/nunit/multipart

Parameters and request body

This request does not require any parameters. Instead, you need to submit two separate files: one containing the test execution details and the other containing the imported test report.

Test Execution file structure

  1. fields object:

    • summary: Summary of Test execution issue that will be created.

    • project.id: Project id in which the Test execution will be created.

    • issuetype.id: The identifier specifying the type of issue to be created.

  2. agileTestFields object:

    • milestoneId: The identifier of the milestone that this test execution should be associated with.

    • testPlanKeys: An array of issue keys of Test plan that this test execution is related to.

Each of these fields serves a specific purpose in creating and organizing the test execution:

  • The fields object contains standard issue creation information like what project it belongs to and what type of issue it is.

  • The agileTestFields object contains Agile Test-specific information for linking the execution to milestones and test plans.

For the report, it will be similar to Import test result only.

Example

BASH
curl -X 'POST' \
  'https://api.agiletest.app/ds/test-executions/nunit/multipart' \
  -H 'accept: application/json' \
  -H 'Authorization: JWT <token>' \
  -H 'Content-Type: multipart/form-data' \
  -F 'results=@my-report.json;type=application/xml' \
  -F 'testExecution=@test-execution.json;type=application/json'

In that, <token> is the result from previous step Get Authenticated.

Regarding the test result, we will reuse the previous example.

Test execution detail example
JSON
{
  "fields": {
    "summary": "Regression test",
    "project": {
      "id": "17110"
    },
    "issuetype": {
      "id": "16396"
    }
  },
  "agileTestFields": {
    "milestoneId": 5555,
    "testPlanKeys": ["ATP-364", "ATP-362"]
  }
}

In this example, make sure all details provided are accurate and relevant; otherwise, the request will fail. For example, if the issuetype.id you specify does not exist in the project with ID 17110, the system will return an error with the corresponding error code 400 .

Output example
JSON
{
  "id": "321348",
  "key": "ATP-1859",
  "url": "https://company.atlassian.net/browse/ATP-1859"
}

Should you need any assistance or further AgileTest inquiries, contact here!
